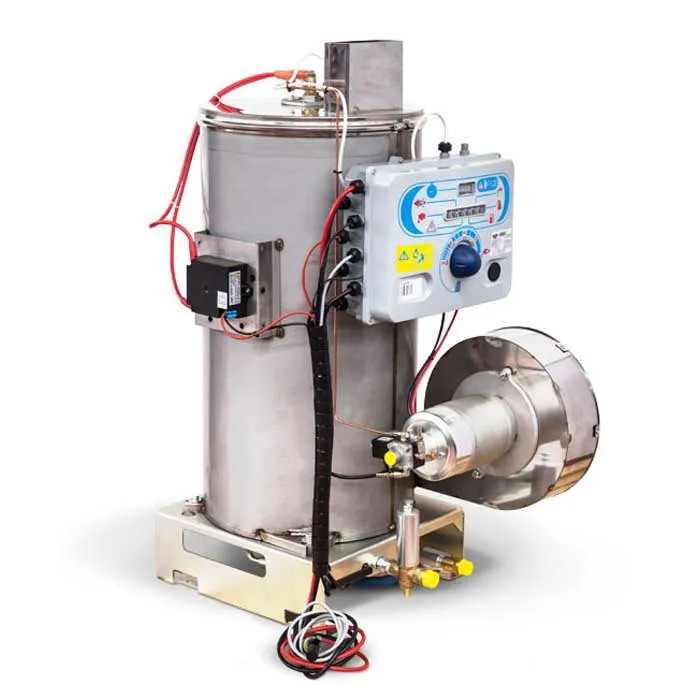

Medium Boiler Assembly with Panel 12v - Mazzoni

The Mazzoni 25 L/min diesel-fired boiler turns a cold water pressure cleaner into a hot water machine. It runs on 12 V and draws far less current than the large model, so it suits ute, truck and trailer builds with no generator needed. The control panel comes fitted and wired.

Specifications / Features:

• Brand: Mazzoni
• Maximum Flow: 25 L/min
• Maximum Pressure: 5,076 PSI (350 bar)
• Heat Output: 90,000 kcal/h (about 105 kW)
• Fuel: Diesel
• Fuel Consumption: 8.31 kg/h
• Diesel Nozzle: 2.25
• Coil: 35 m of 3/8" seamless tube, 2.77 mm wall
• Voltage: 12 V DC
• Current Draw: About 36 A (fan motor 28 A, ignition transformer 8 A)
• Thermostat Range: 30 to 150°C
• Water Inlet: M22 Male
• Water Outlet: M22 Male
• Flue: 150 mm diameter
• Weight: 61 kg

Control panel includes:

• Thermostat with adjustment knob
• Flame control with photo-sensor
• Flow switch and pressure switch, so the burner only fires when water is moving
• Fuel level switch
• Hour counter and LED alarm lights
• On/off switch, reset button and contactor
• Safety valve

Benefits:

• Hot water lifts grease, oil and chewing gum far faster than cold
• 12 V operation for vehicle-mounted builds, with no 240 V supply needed
• Seamless coil with no welds
• Supplied with the panel fitted and wired
• Runs on automotive diesel only. Do not use biodiesel
