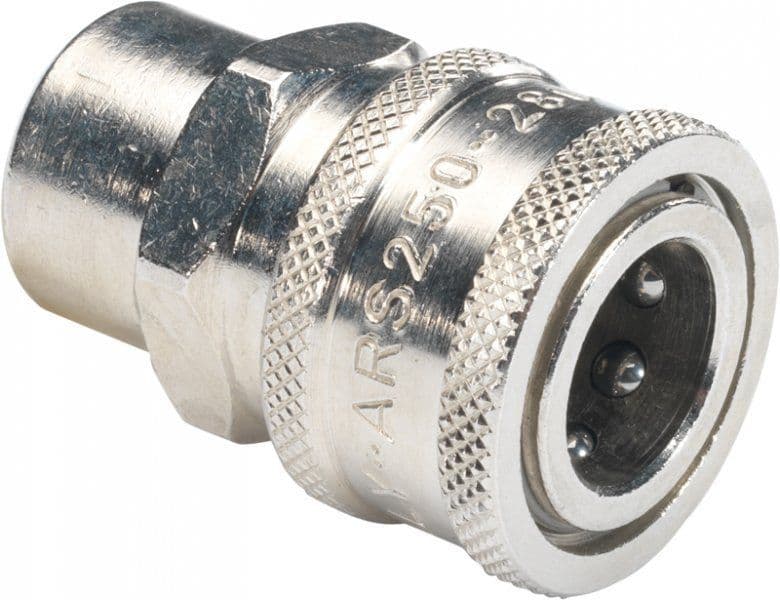

Quick Connect Coupling ARS250 – 3/8" BSP Female – PA

The PA ARS250 is a 15 mm ball-type quick connect for high-pressure cleaning equipment, rated to 250 bar. It pairs with any ARS250 or AR2 plug, so guns, lances and hoses can be swapped in seconds without tools.

This is the coupling (female quick-connect) half with a 3/8" BSP female thread, normally fitted to the hose or pump end.

Specifications / Features:

• Brand: PA
• Model: ARS250 coupling
• SKU: 145 26.2010.10
• Inlet: 3/8" BSP F
• Rated Pressure: 3,626 PSI (250 bar)
• Rated Flow: 30 L/min
• Temperature Rating: 90°C
• Plug Size: 15 mm (8.5 mm bore)
• Material: Nickel-plated brass body with NBR O-rings
• Compatible With: ARS250 and AR2 series
• Country of Manufacture: Italy

Benefits:

• Tool-free connection and release for fast gun, lance and hose changes
• Ball-lock design holds securely under pressure
• Nickel plating resists corrosion in daily wet use
• Interchangeable with other ARS250 and AR2 series fittings
