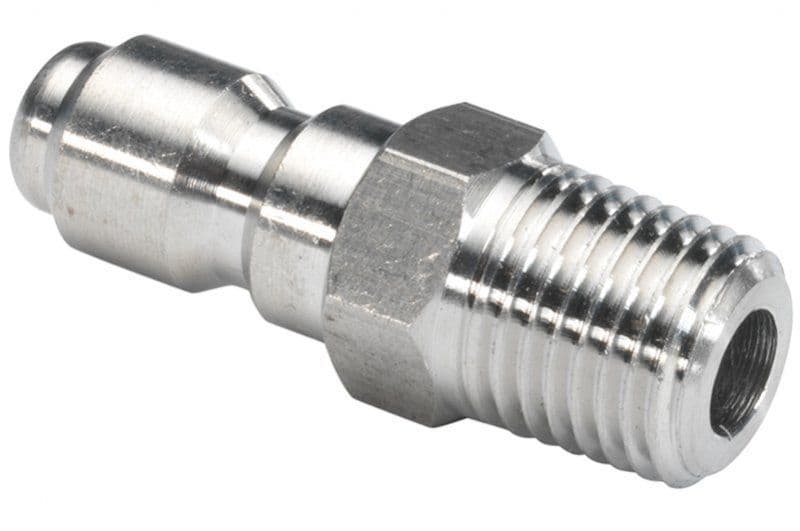

Quick Connect Plug ARS250 – 1/2" BSP Male – PA

The PA ARS250 is a 15 mm ball-type quick connect for high-pressure cleaning equipment, rated to 250 bar. It pairs with any ARS250 or AR2 plug, so guns, lances and hoses can be swapped in seconds without tools.

This is the plug (male quick-connect) half with a 1/2" BSP male thread, fitted to the gun, lance or accessory end.

Specifications / Features:

• Brand: PA
• Model: ARS250 plug
• SKU: 145 26.2024.61
• Thread: 1/2" BSP M
• Rated Pressure: 3,626 PSI (250 bar)
• Rated Flow: 30 L/min
• Temperature Rating: 90°C
• Plug Size: 15 mm (8.5 mm bore)
• Material: Nickel-plated steel
• Compatible With: ARS250 and AR2 series
• Country of Manufacture: Italy

Benefits:

• Tool-free connection and release for fast gun, lance and hose changes
• Hardened plug resists wear from repeated connections
• Nickel plating resists corrosion in daily wet use
• Interchangeable with other ARS250 and AR2 series fittings
