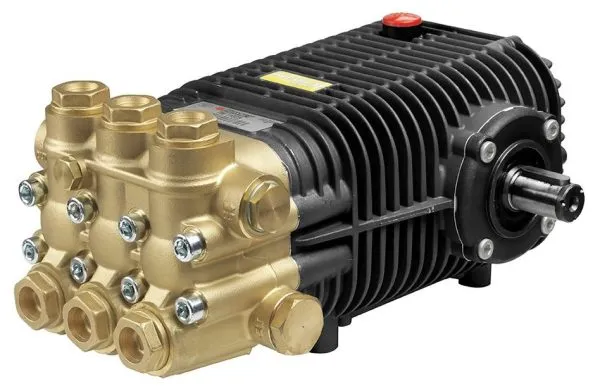

High Pressure Triplex Pump – TW Series – Solid, 24 mm Shaft – COMET - 33LPM 3600PSI
SKU 210 TW8036S
$1,978.90incl. GST
In stock · only 2 left
The Comet TW8036S is a heavy duty triplex plunger pump for big petrol and diesel machines. It delivers 32.6 L/min at 3,600 PSI at 1,450 rpm, with solid ceramic plungers and a forged brass head, and a solid 24 mm shaft for gearbox, belt or coupling drive.
Specifications / Features:
- Brand: Comet
- Model: TW 8036 S
- Flow: 32.6 L/min (8.6 US GPM)
- Pressure: 3,600 PSI (248 bar)
- Speed: 1,450 rpm
- Power Required: 20.5 HP (15.3 kW)
- Shaft: Solid, 24 mm
- Inlet: 3/4" BSP Female
- Outlet: 1/2" BSP Female
- Plungers: 3 x solid ceramic, 22 mm
- Head: Forged brass
- Crankcase: Die-cast aluminium
- Maximum Inlet Temperature: 60°C
- Oil: 1.1 L of 15W-40
- Weight: 20 kg
- Dimensions: About 350 x 213 x 165 mm
Benefits:
- High flow for surface cleaners, long hose runs and twin-gun work
- Ceramic plungers and a forged brass head for a long service life
- Slow 1,450 rpm speed keeps heat and wear down
- Inlet and outlet ports on both sides of the head for easy plumbing
- Change the oil after the first 50 hours
- Pump only. Unloader, gearbox and fittings are sold separately
