Turn-key. Ready to work.

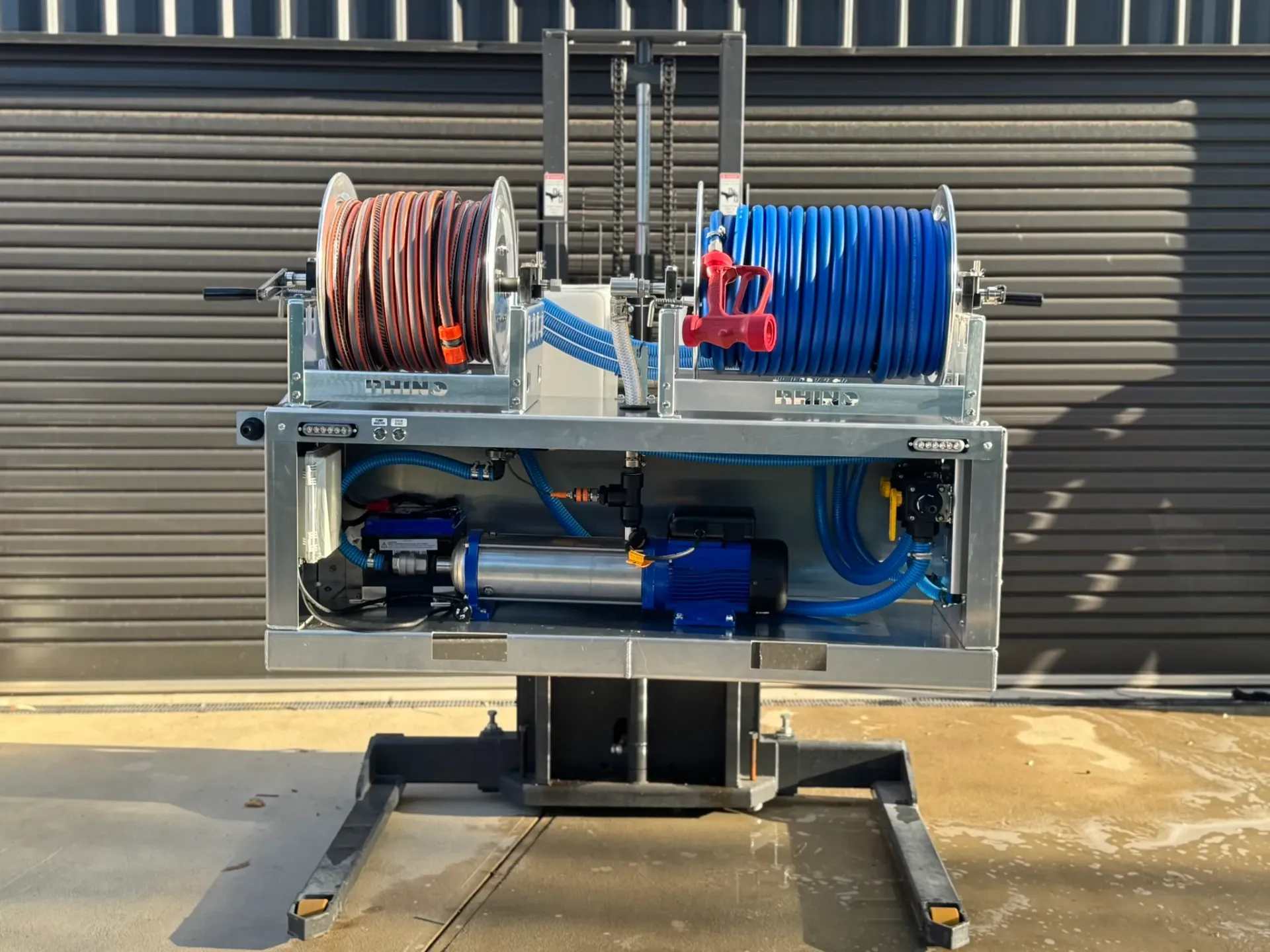

The Ultimate Softwash Skid is our flagship system — everything you need to run softwash jobs at full speed, mounted, plumbed and tested before it leaves our Jandakot workshop. No sourcing parts, no fabrication, no guesswork.

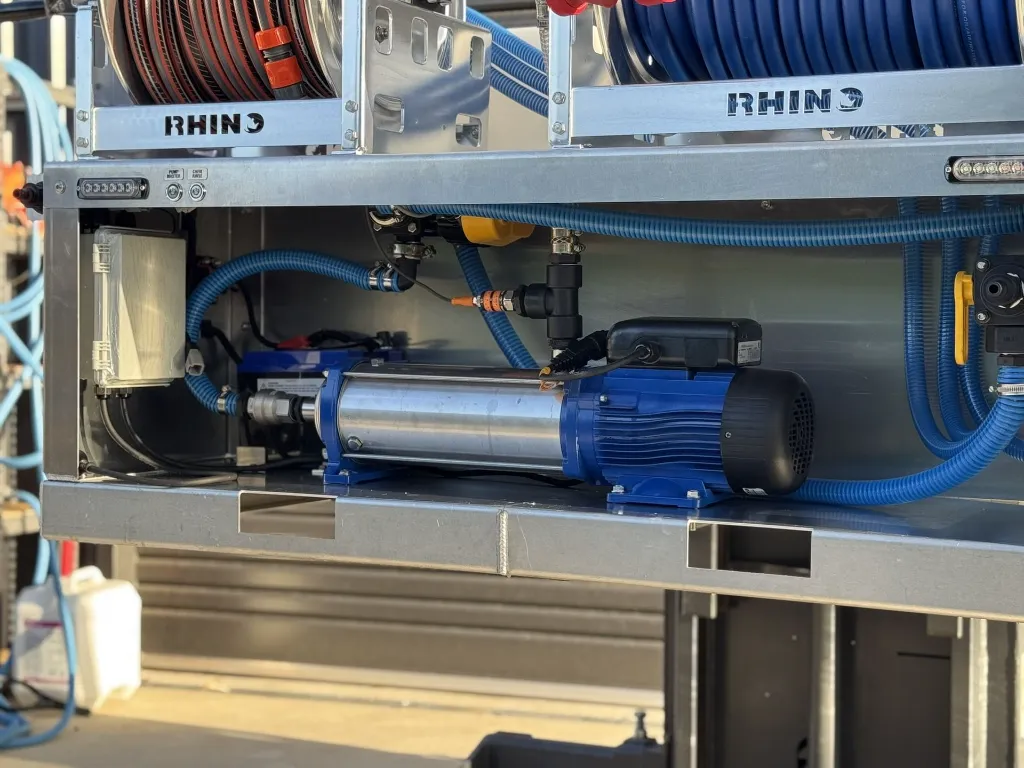

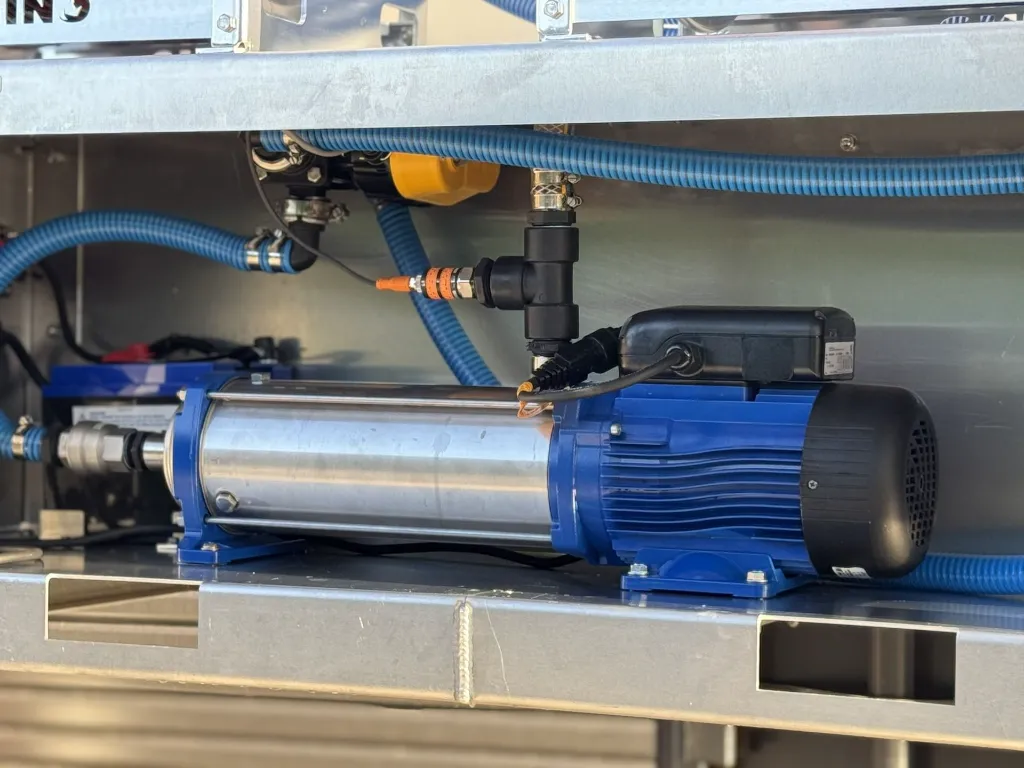

Lowara power — 240V 19-stage pump
The quicker you can work, the more jobs you smash out (and the better your payday). The Lowara 19-stage booster pump is full 316 stainless steel construction and delivers the power you need — built tough to keep delivering it for the long haul.

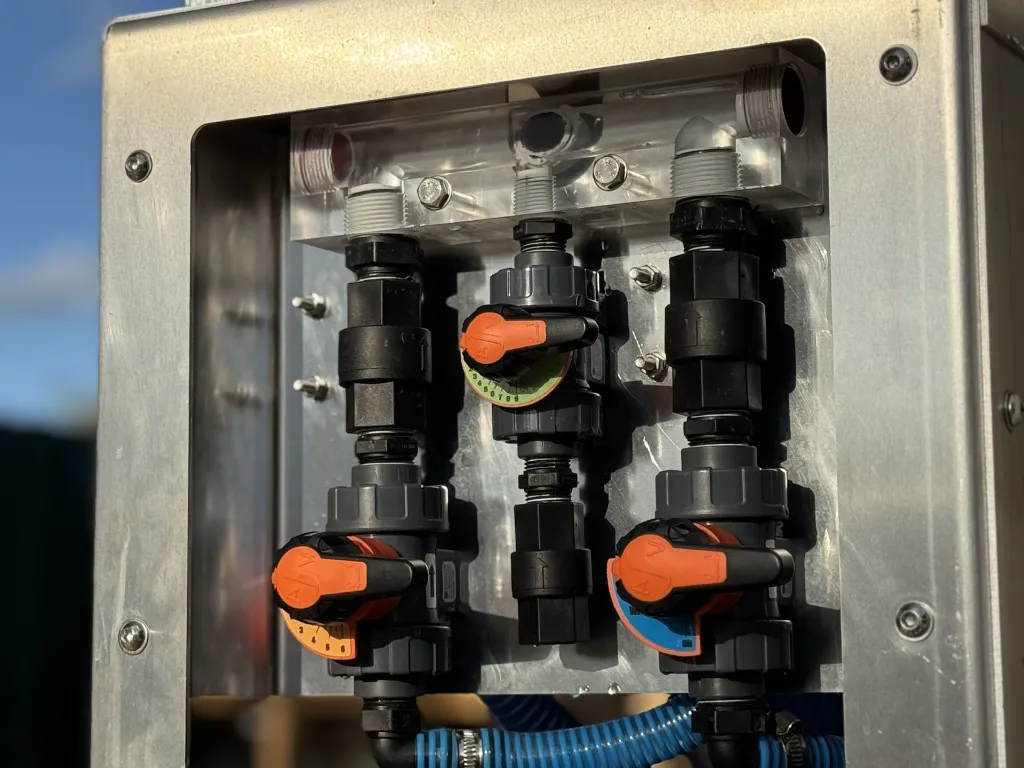

On-board proportioning system
Proportioners are one of the key components to increasing your business efficiency. They let you mix chemicals in-line, without chemical injection methods or creating "batches" to pull solutions from. Our proportioners feature a clear manifold for easy fault diagnosis and clear dial indicators so you can accurately proportion your chemical delivery.
One hose, chemical and rinse
A 12V 3-way valve lets you switch between applying chemicals and rinsing with fresh water — all through the same hose. One click of a button and you're good to go.
Chemical indicator lights
Two bright indicator lights automatically illuminate whenever the 12V 3-way valve draws from your chemical line. No more guessing or walking back to your equipment — a quick glance confirms chemical flow so you can stay focused on the job.
Aluminium skid, built for mounting
3mm constructed aluminium skid at 1400mm x 1250mm, with bolt-down holes and forklift slots to make placement on utes or trailers easier. Highest point of the hose reels sits at 960mm.
Straightforward controls
Easy to use and understand — system control all in one place. Additional buttons can be added to integrate with your existing equipment and pumps.
70m of 5/8" softwash hose
Mounted on an 18" reel, rated to 350 PSI. Plenty of reach without the heavy, stiff feel.
40m supply hose
A separate aluminium hose reel carries 40 metres of 19mm supply hose — purely for storage, keeping high flow rates into your buffer tank.
RB65 red washdown gun
Stainless steel, with spray pattern adjustable from a tight 0° jet to a 60° fan just by changing pressure on the handle.
Large 250L tanks
Two 250L tanks — one dedicated to buffer water, one to SH. Straightforward and organised.
Flush and prime
Easily accessible 3-way valves make it simple to prime your pump and flush your SH line with clean water, keeping the system running longer.
Specifications
| Skid material | 3mm aluminium |
| Skid dimensions | 1400mm (L) x 1250mm (W) |
| Overall height | 960mm (at hose reels) |
| Pump | Lowara 19-stage booster, 316 stainless |
| Power supply | 240V |
| Tanks | 2 x 250L (buffer water + SH) |
| Softwash hose | 70m x 5/8", rated 350 PSI |
| Supply hose | 40m x 19mm |
| Hose reels | 18" softwash reel + aluminium supply reel |
| Gun | RB65 stainless, 0°–60° adjustable |
| Chemical control | 12V 3-way valve + on-board proportioner |
| Mounting | Bolt-down holes, forklift slots |
Want to see it in person?
Book a video call for an in-depth walkthrough, call 0499 755 001, or visit the warehouse at 5/100 Prinsep Road, Jandakot — open 8am to 4pm, Monday to Thursday.
