Take control of your softwash mix without the hassle of batch mixing.
Our Softwash Proportioner is designed to let you adjust your water, sodium hypochlorite and soap ratios on the fly, giving you better control over your mix at the point of application. Whether you are rinsing, applying a light maintenance wash, or increasing strength for heavier organic growth, the proportioner makes it easy to dial in the right blend for the job.

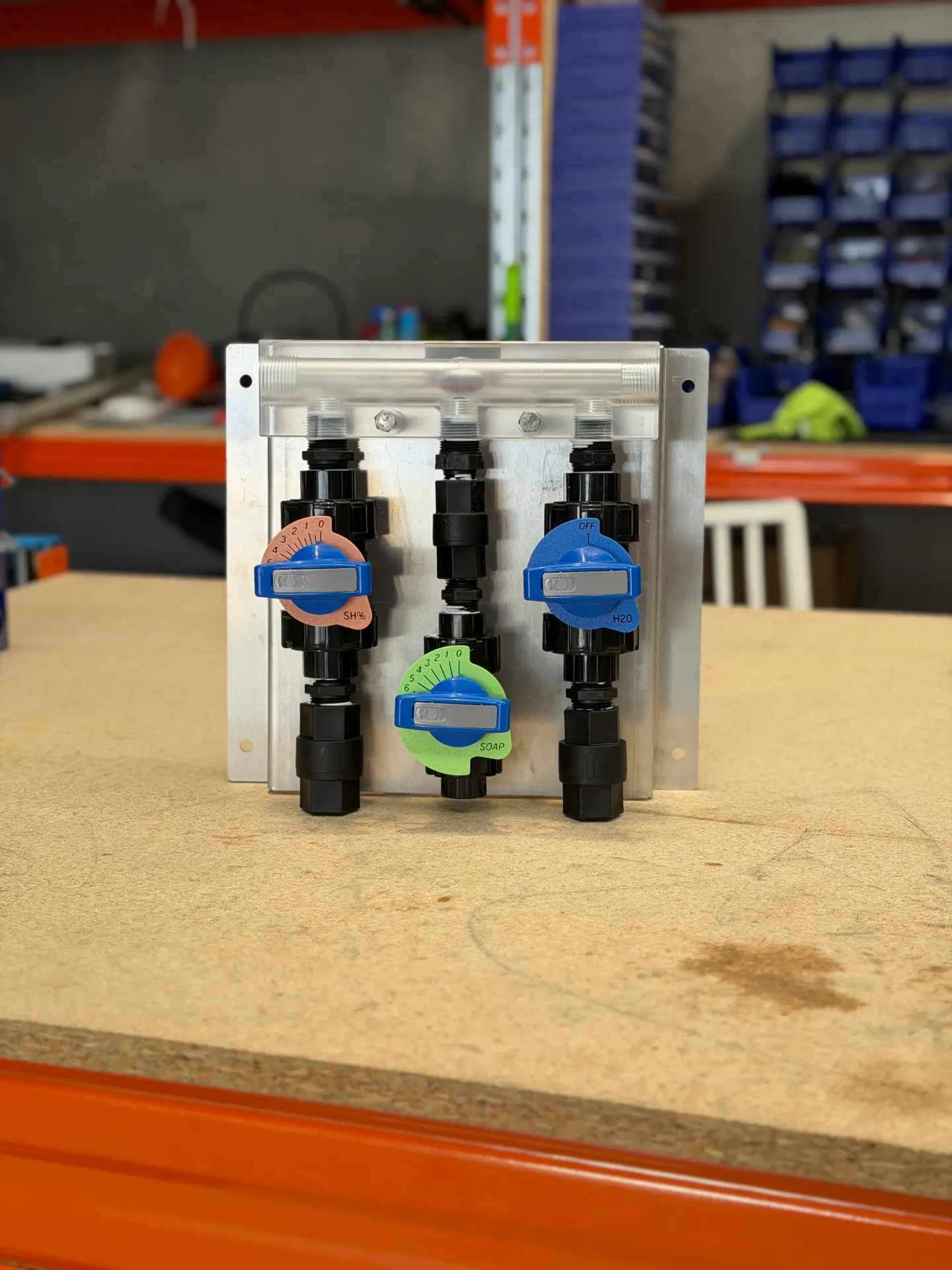

Built with a clear acrylic manifold, this model makes it easier to see what is happening inside the system. If air is entering the line, the clear body helps make potential leaks easier to spot and identify, saving time when troubleshooting and keeping your setup running smoothly.
The PVC metering valves feature an all-poly construction with Viton seals for strong chemical resistance in softwash applications. Each valve includes easy-to-read dial indicators, allowing for repeatable settings and more consistent chemical control. The soap valve also features a longer 180-degree adjustment range, giving you finer control when dosing surfactant.
To help prevent tanks from equalising, each line is fitted with check valves. These include highly corrosion-resistant Hastelloy springs, making them well suited to harsh softwash chemicals and regular sodium hypochlorite use.
3/4" Proportioner is recommend for larger pumps such P40, Lowara 240v, Udor, Goulds or other high flow pumps
The manifold support a bypass loop, going back to the proportioner manifold with the 1" through manifold design.
1/2" Proportioner is recommend for smaller 12v pumps such as the Delavan 12V.
Key Features
Rear Port:
A unique feature of our proportioners is the rear port - We supply the proportioner with 2 plugs to cap off the other holes, you can pull solution from any of the 3, 1" Manifold holes - Wherever possible we recommend pulling from the rear or the side you have the water connected to.
On-the-fly chemical control
Adjust your SH and soap mix as you work, without needing to stop and batch mix.
Clear acrylic manifold
Makes it easier to identify possible air leaks and monitor flow through the system.
Chemical-resistant metering valves
PVC valves with all-poly construction and Viton seals for reliable softwash use.
Easy-to-read dial indicators
Helps you return to previous settings and keep your mix more consistent from job to job.
Fine soap adjustment
The soap valve features a longer 180-degree adjustment range for more accurate surfactant dosing.
Check valves on each line
Helps stop tanks from equalising and keeps your mix flowing in the right direction.
Hastelloy spring check valves
Highly corrosion resistant and better suited to sodium hypochlorite environments than standard spring materials.
Why Use a Softwash Proportioner?
Batch mixing works, but it can be slow, wasteful and less flexible. A proportioner gives you more control over your chemical draw, allowing you to adjust your mix based on the surface, level of growth and job requirements.
For exterior cleaning businesses, this means faster setup, less wasted chemical and a cleaner, more professional workflow. It is a simple upgrade that can make a big difference to the way your softwash system operates.
